Name: 125Hz DIY IR Touch Frame 93 Inch Large Touch Screen Overlay For Video Wall LVD Approved
Brand: YCLTouch
Price: 1 USD

Brand Name : YCLTouch

Model Number : YCL-PJ

Certification : RoHS, ISO 9001:2000, ce, EMC, LVD

Place of Origin : China

MOQ : 1

Price : Negotiable

Payment Terms : L/C, T/T, Western Union

Supply Ability : 20000/month

Delivery Time : 3-7 Days

Interface type : USB

Screen size : 15"-500"

Touch points : 10 Points

Product name : IR Touch Frame

Interface : USB 2.0(full-speed)

Material : Aluminum Alloy Frame

Contact Now

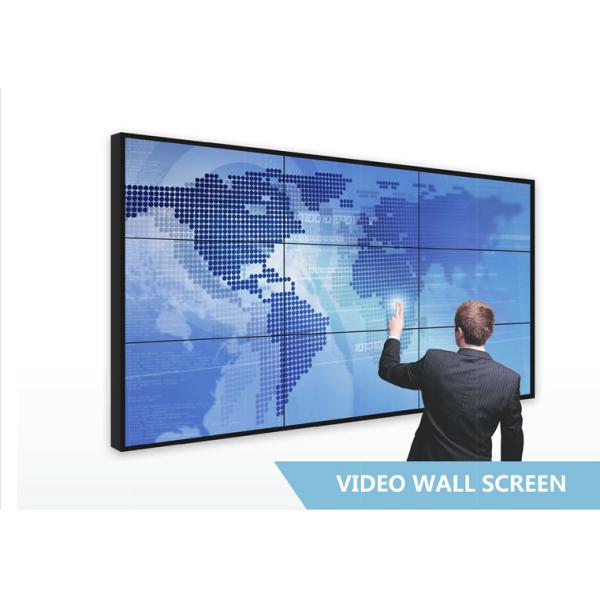

Infrared touch frame for video wall Large size IR touch frame overlay

93 inch Video Wall Use Large Size Real Multi Point IR Touch Frame with USB Interface, Plug and Play

YCLTouch supply full rang of video wall use large size infrared touch frame, standard is 10-point, also can customize 16points. It has USB interface, once connect to your computer or media player box, it will work at once, no need any driver software, support plug and play.

Size can be customized as per request, and we can cut it into several pieces for a small packing, you can connect each piece one by one once received.

Aluminum alloy material ensure the IR touch frame is strong enough for installation and we provide 1- year warranty, any spare parts needed, will send for free during warranty period.

IR touch ten points touch (Up to 16 points). Response time is less than 10ms. It can operated by fingers, fingers cover by glove, or any opaque objects.

Most system support like Android, Mac, Windows, Ubuntu...

Touch Frame Details

Touch specifications

Item		Specification
Active Area(Display Device)		15~500 inch
Housing(Only limited profile shipments)		Aluminum Alloy
Housing Color(Only limited profile shipments)		Black
Response Time		<10ms
Frame Rate		125Hz
Touch Accuracy		±4mm(over 90% Area)
Input Method		Finger,Finger cover by glove,Opaque objects
Output Form		Coordinate Value
Touch Durability		Unlimited
Minimum Object Sizes For Touch	Single Touch	6mm
	Multi Touch	8mm
Interface		USB
		TTL Serial Port

Reliability

Item	Specification
Low temperature operation	Temperature:-20ºC, time:48H
Low temperature start	Temperature:-20ºC, time:4H
Low temperature storage	Temperature:-20ºC, time:48H
High temperature operation test	Temperature:60ºC, time:48H
High temperature, high humidity operation	Temperature:60ºC, humidity:95%RH, no condensation, time:48H
High temperature, high humidity storage	Temperature:60ºC, humidity:95%RH, no condensation, time:48H
Temperature change test	Temperature:-20ºC~60ºC, Loop number:10 times, Speed:1ºC/min
Thermal Shock Test	High temperature:85ºC, low temperature:-45ºC,50ºC cycles
Packing vibration Test	Frequency:5~200H, power spectral density: 0.015G2/Hz, total RMS acceleration:1.57G, vibration mode: random vibration
Package drop test	A corner three side six-faces
ESD level	According to IEC61000-4-2 level B. Contact discharge 4 KV, air discharge 8 KV

Electrical Specifications

Storage Conditions
